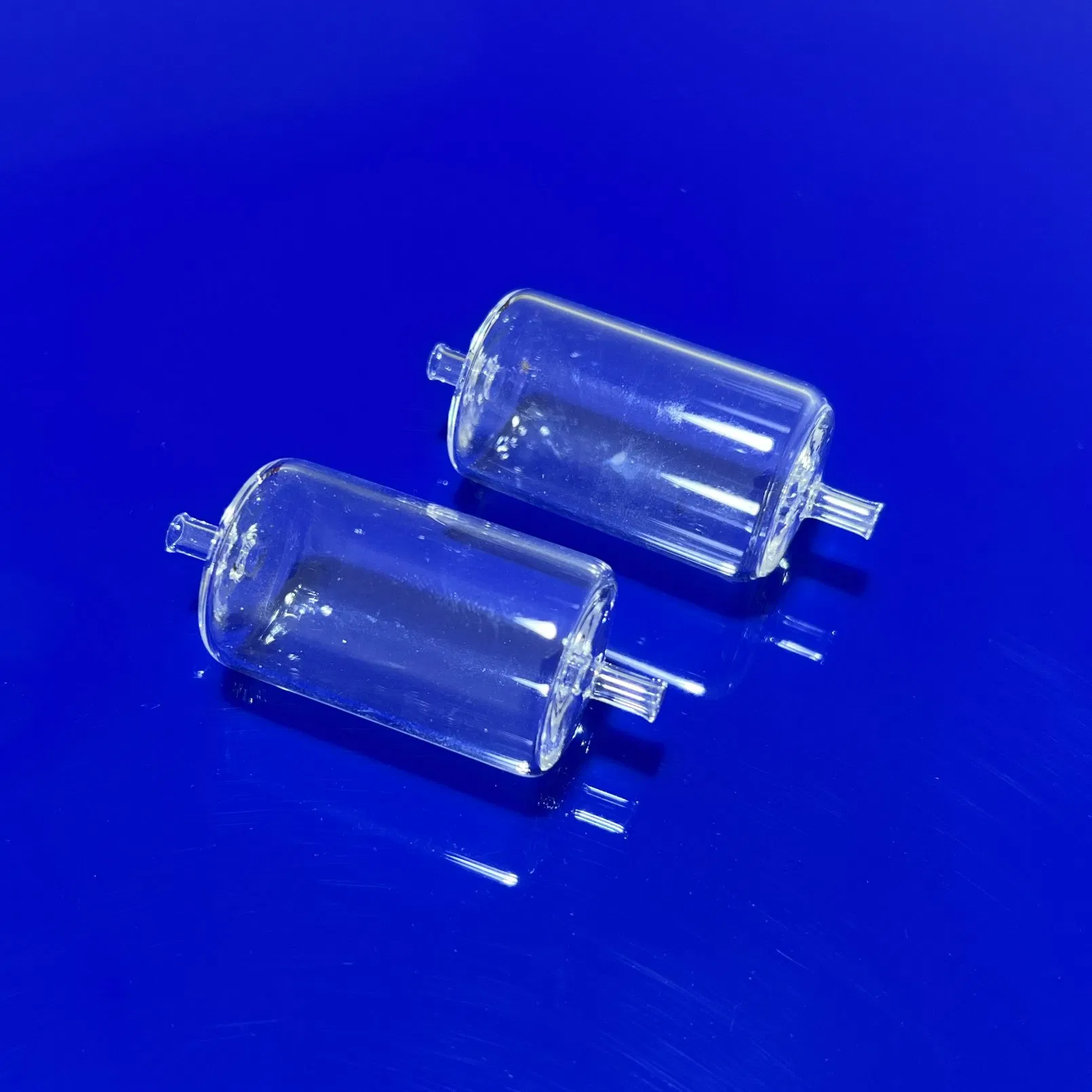

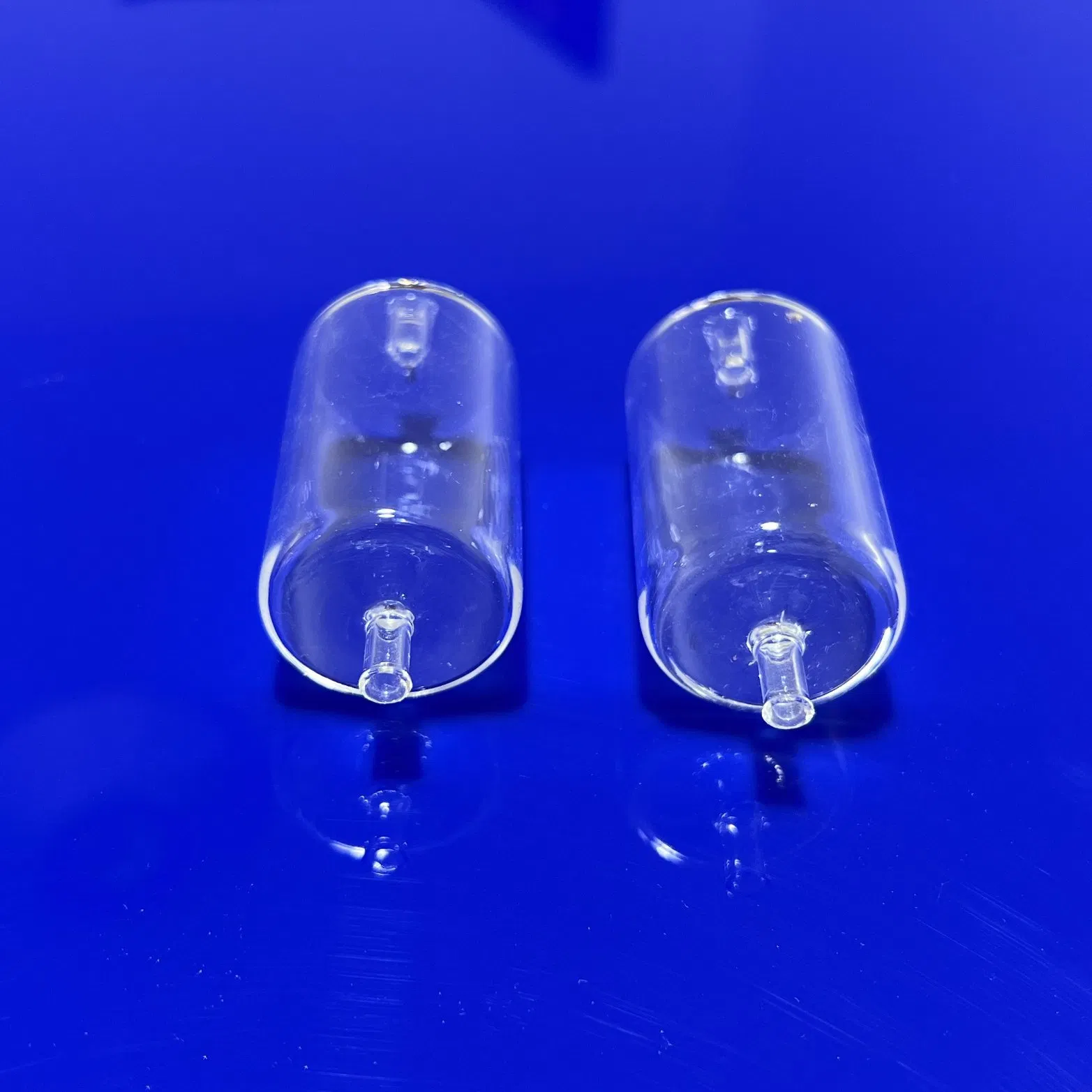

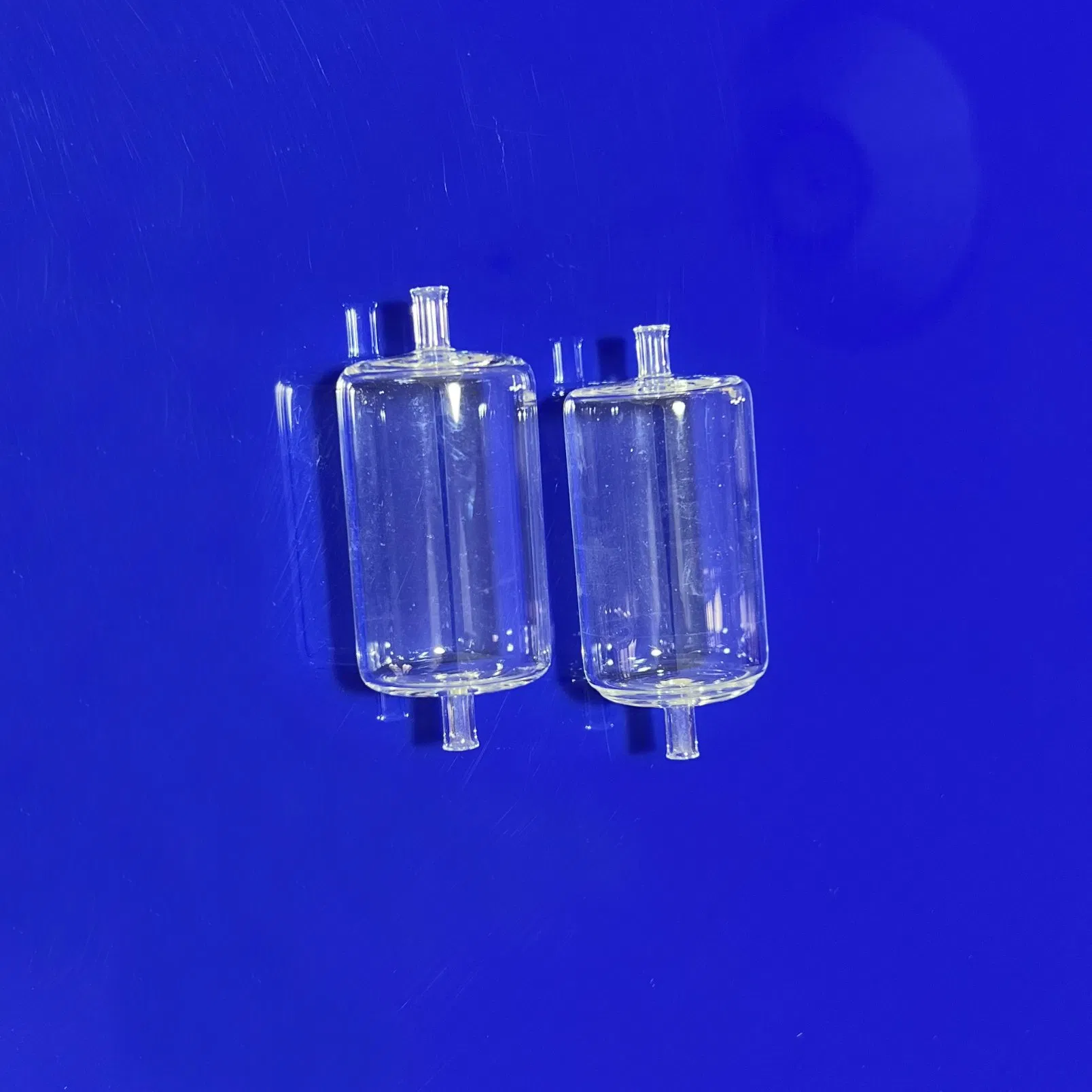

Quartz Glassware for Laboratory Research with High Quality

i

Specifications & Basic Info

Model NO.

TJ000116

Shape

One End Closed Quartz Tube

Color

Transparency

Softening Point

1680℃

Purity

99.99%

Density

2.2g/cm3

Outside Diameter

2-350mm

Capacity

30,000 Pcs/Month

✓

Product Description

Warm Reminder: Quartz glass tube sizes vary significantly. Outer diameters range from 2-500mm, wall thickness from 0.5-10mm, and lengths from 5-3000mm. Prices depend on specific drawings and quantities.

The standard transparent quartz tube is manufactured using high-purity quartz sand. These products are characterized by their exceptional purity, strong heat resistance, high light transmittance, and precise dimensional accuracy. They are ideally suited for lighting, heating, and various specialized fields including halogen lamps, water treatment lamps, and automotive lighting.

P

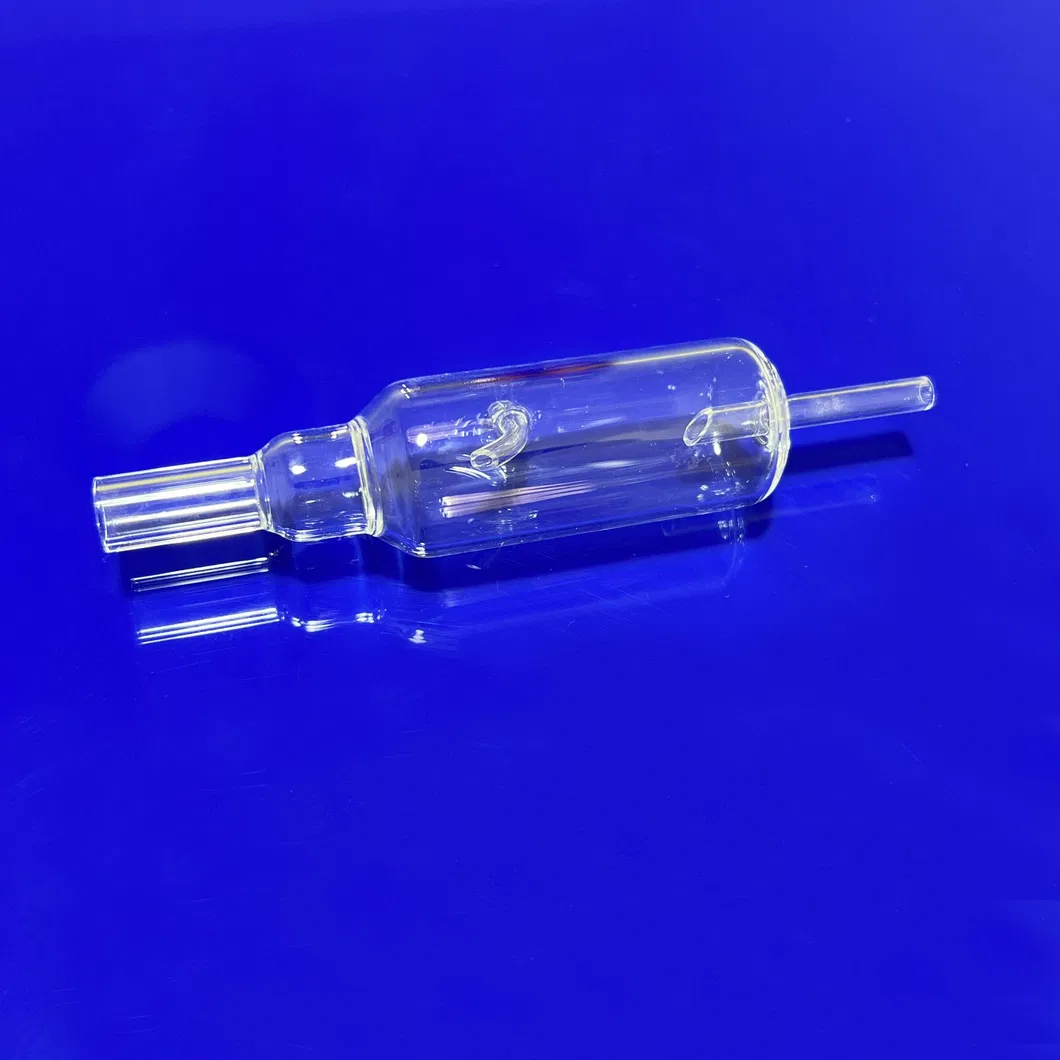

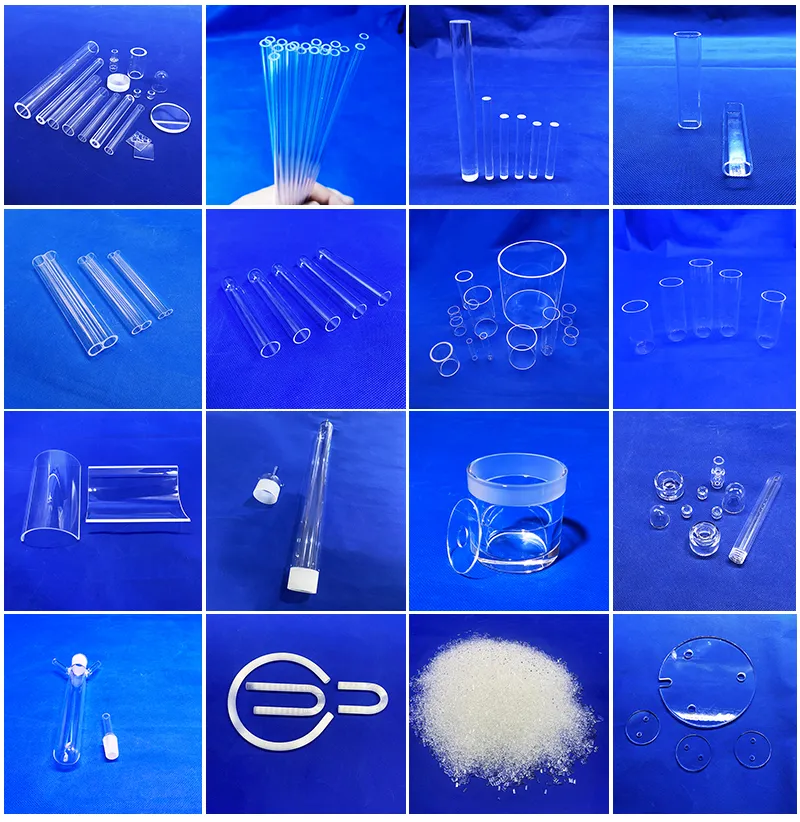

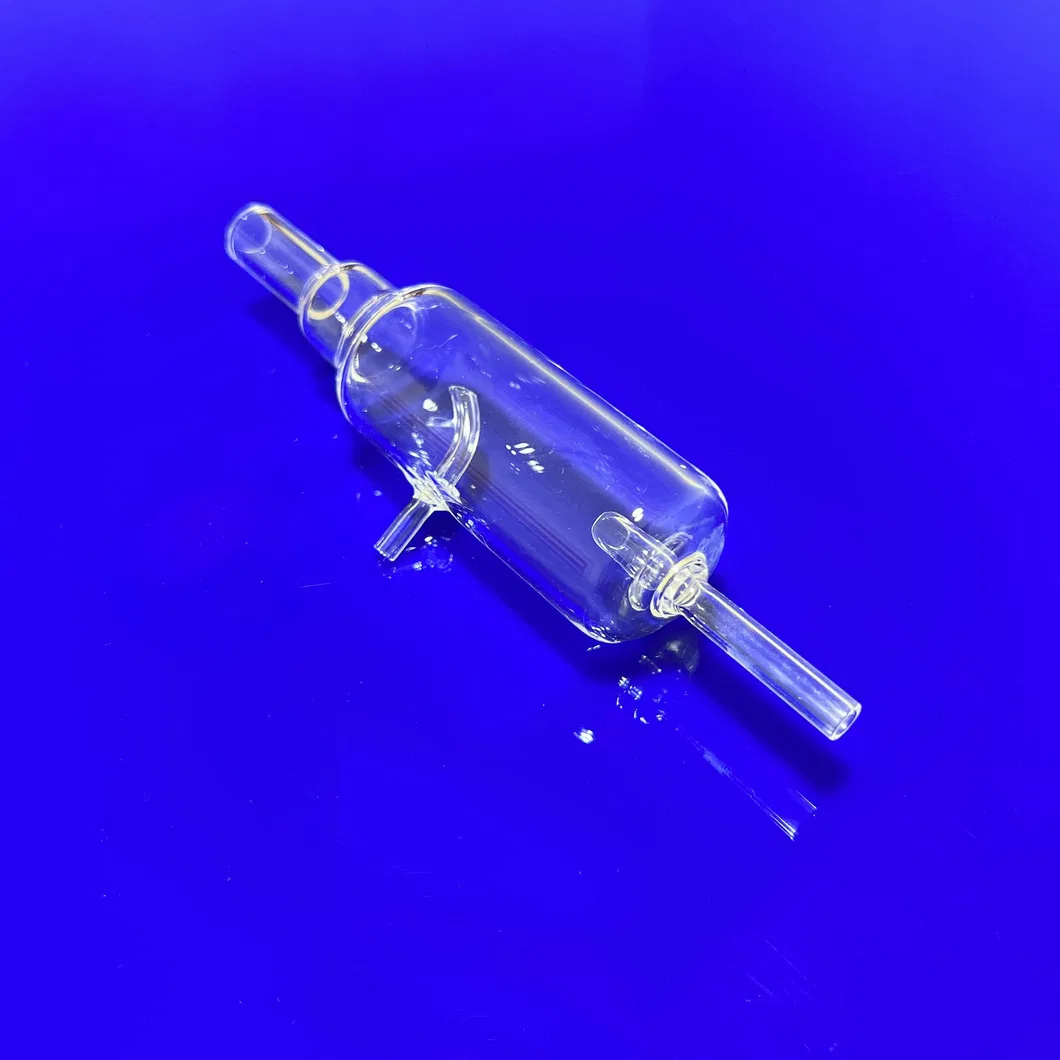

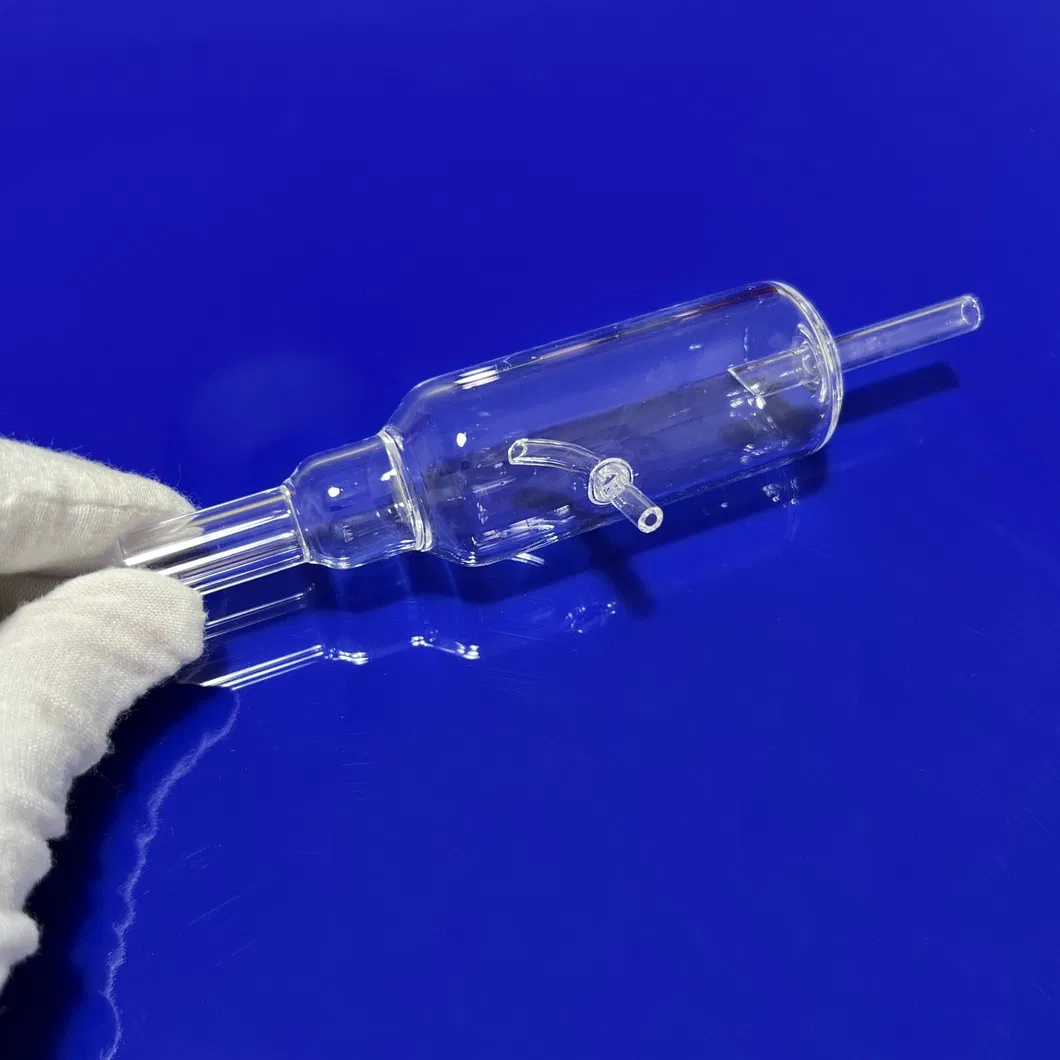

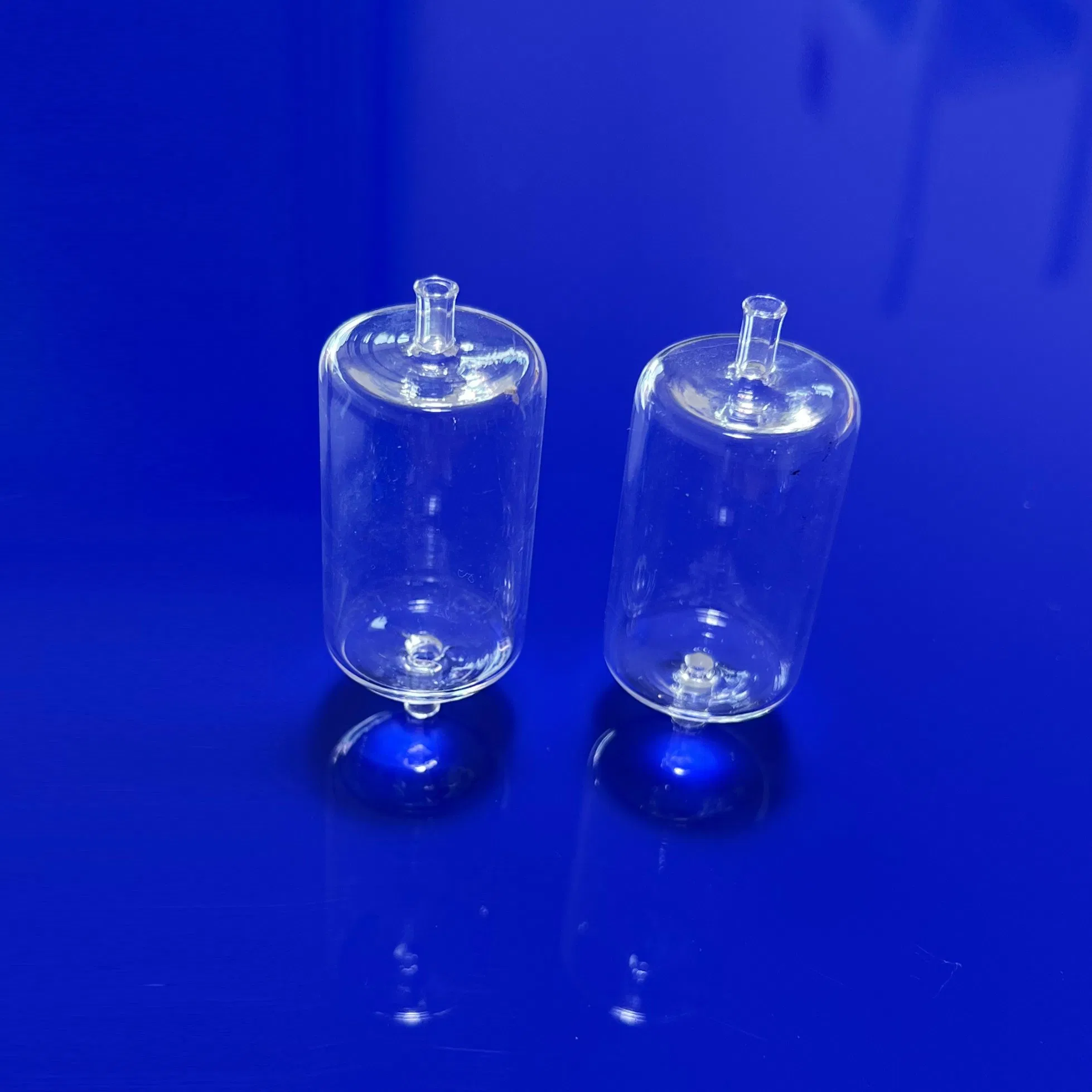

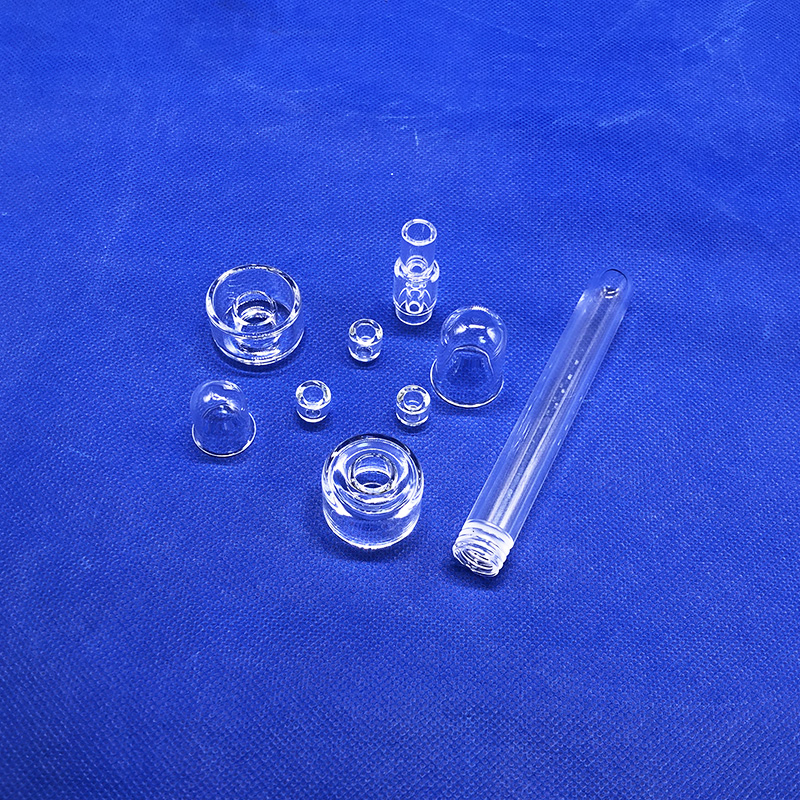

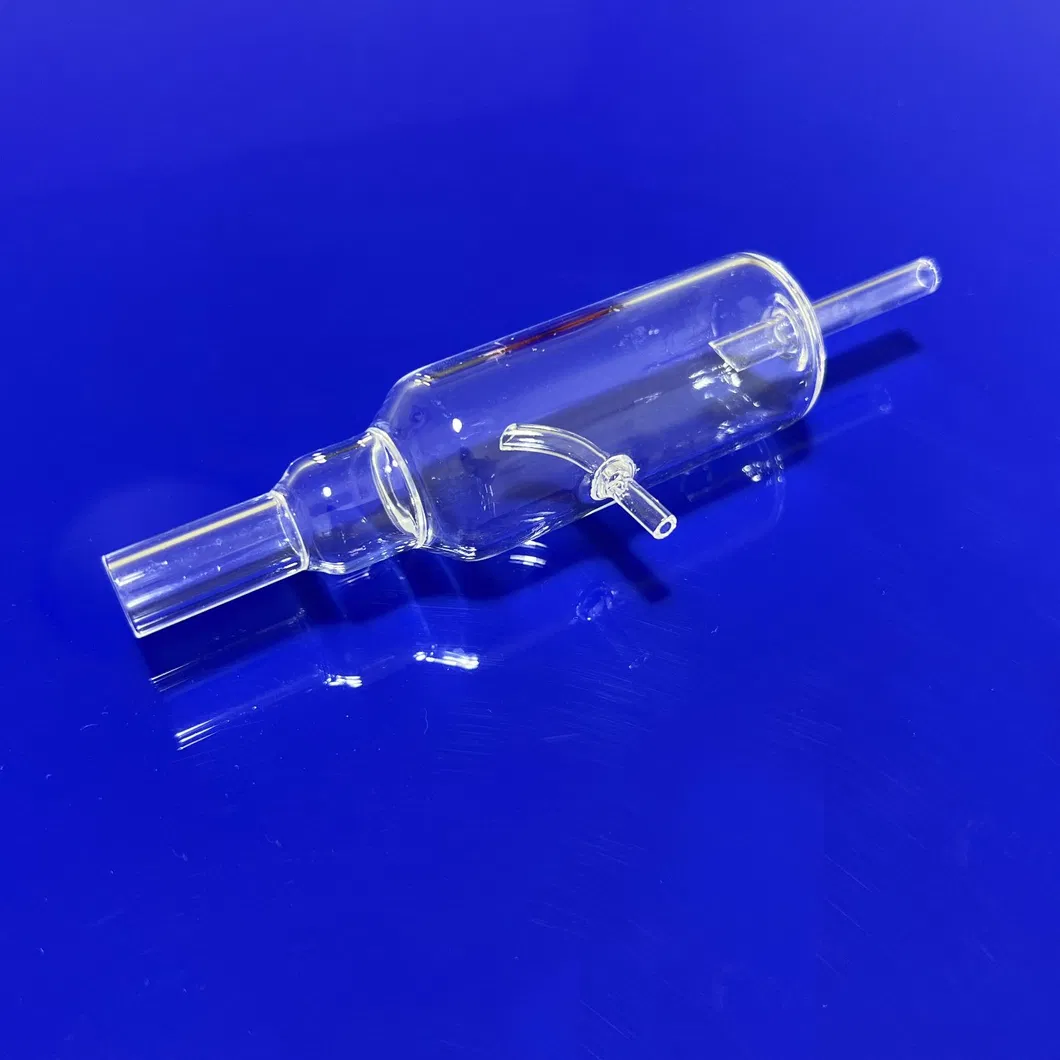

Detailed Product Gallery

T

Technical Parameters

Range of OD (mm)	Tolerance of OD	Range of WT (mm)	Tolerance of WT
4-20	±0.2mm	1-2	±2%
20-60	±0.5mm	1-2	±2%
60-150	±1.0mm	2-3	±2%
150-200	±1.0mm	3-4	±2%
200+	±2.0mm	4-5	±2%

Product Type	Main Applications
Standard Clear Quartz Tube	Lighting / Heating / Special light sources
Opaque Quartz Tube	Home appliances heating
High Ozone Quartz Tube	Water treatment / Germicidal
UV Block Quartz Tube	Automotive and specialized lighting
Hydroxyl Free Quartz Tube	Chemical industry

S

Packaging & Logistics

We use inner bubble film and professional shipping cartons or wooden cases to ensure the safety of quartz products during transit.

?

Frequently Asked Questions

1. What is the purity level of your quartz glass tubes?

Our quartz products feature a high purity level of 99.99%, ensuring excellent performance in high-temperature and chemical environments.

2. Can you customize quartz tubes to specific dimensions?

Yes, we provide extensive customization services including cutting, grinding, welding, bending, and special shaping according to your technical drawings.

3. What industries use these quartz tubes?

They are widely used in lighting (halogen, UV, automotive), heating elements, semiconductor manufacturing, laboratory research, and water treatment systems.

4. How do you guarantee product quality?

We conduct pre-production sample testing and a rigorous final inspection before shipment to ensure all specifications meet the required tolerances.

5. What is the maximum temperature these tubes can withstand?

The softening point of our quartz glass is approximately 1680℃, with an annealing point of 1210℃, making it suitable for high-heat applications.

6. What type of processing services do you offer?

We offer comprehensive processing including bending, welding, punching, decoiling, precision cutting, and surface polishing.
