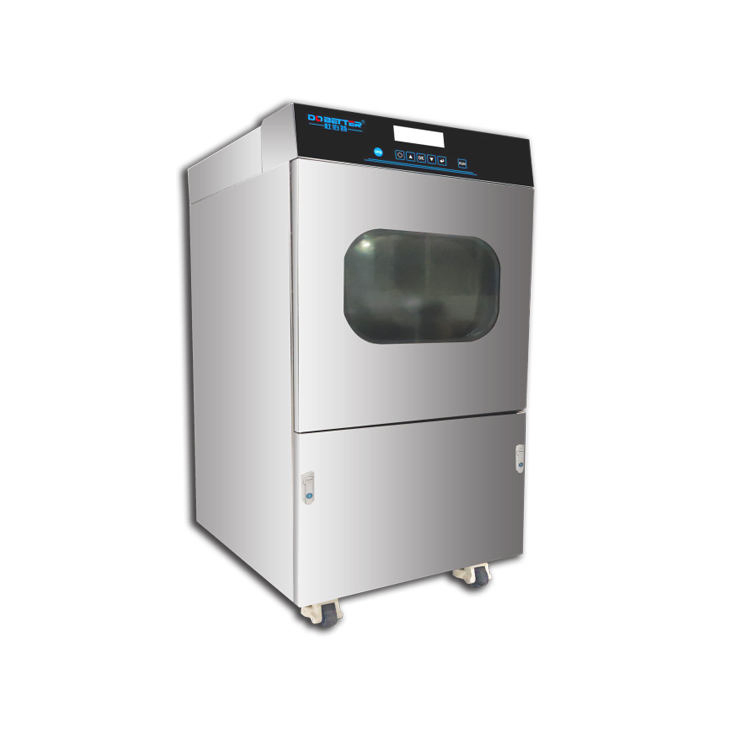

Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
1 / 5
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System
Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System

Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System

Customization: Available
After-sales Service: Lifetime Online Technial Support
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.
DBT-HW-WI
Structure
Floor Standing
Material
Stainless Steel
Certification
ISO
Application
School, Lab
Type
Laboratory Bottle Washer
Shell Material
304 Stainless Steel
Power Supply
AC220V-50Hz
Drying Power
2.5kw
External Diameter
635(L)*735(W)*1050(H) mm
Washing Pump Power
1*0.9kw
Water Consumption
10L Per Time
Chamber Material
316 Stainless Steel
Total Power
7.5kw
Heating Power
4kw
Chamber Volume
145L
Product Overview

DBT-HW-WI Laboratory Bottle Washer

Laboratory Glassware Washing Machine
Features
500L/MIN high flow circulation spray system design, independent spraying from top to bottom, uniform distribution of 360° water curtains.

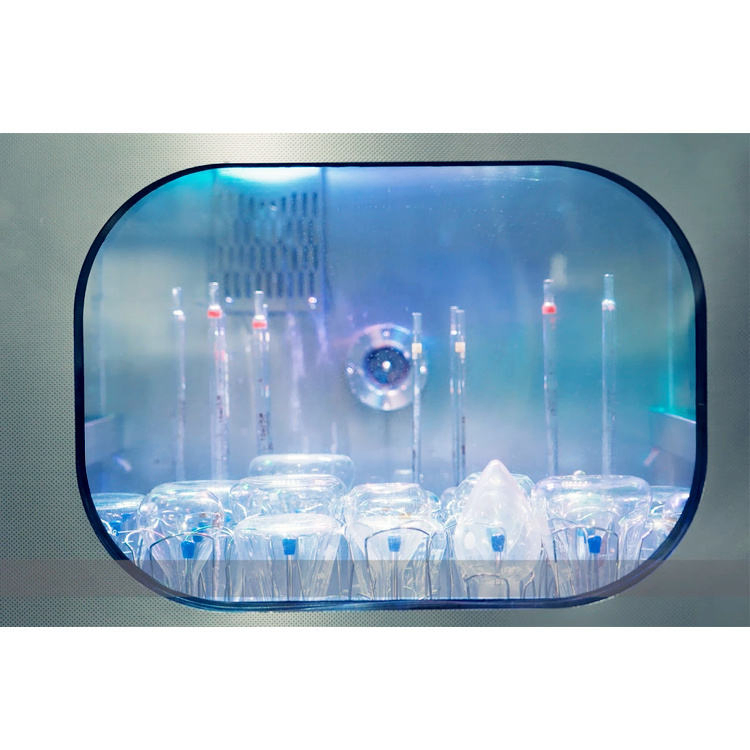

Double insulated glass door design with an integrated waterproof lighting device for real-time observation.
Wireless link capability to realize remote monitoring functions within a LAN.
Electronic door lock for effective safety control, preventing contact with sewage or hot water.

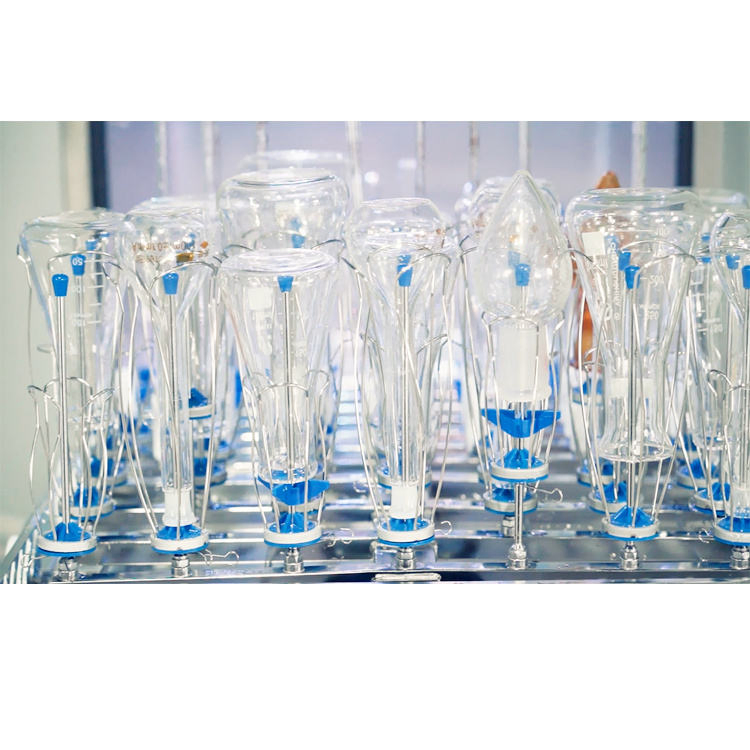

Versatile cleaning baskets and shelves configured for various laboratory utensils.
Microcomputer control with 30 optional cleaning models and 100 customizable setups.
USB interface for program upgrades and data storage; 232 serial port for optional printing.
Dual-monitoring of inlet water flow via flow meter and level switch for accurate chemical proportioning.
Triple sewage circulation filtration system prevents particle recirculation and protects the pump.
High-capacity condenser rapidly turns water vapor into liquid to protect electronic components.
High-efficiency drying system with air heater, HEPA filter, and vortex fan for spotless results.
Main Parameters
ModelDBT-HW-WI
Machine ConfigurationVertical visual window design
External Diameter635(L)×735(W)×1050(H) mm
Weight120Kg
Cleaning Chamber Volume145L
Shell Material304 stainless steel pearlescent plate
Heating Power4KW
Washing Pump Power0.9KW
Drying Power2.5KW
Total Power7.5KW
Control InterfaceTouch panel, blue screen LCD interface
Safety ProtectionProgram operation protection, high temperature protection, flow and level protection
Circulating Pump Flow500L/min
Air FiltrationHEPA Efficient air filtration
Application Cases

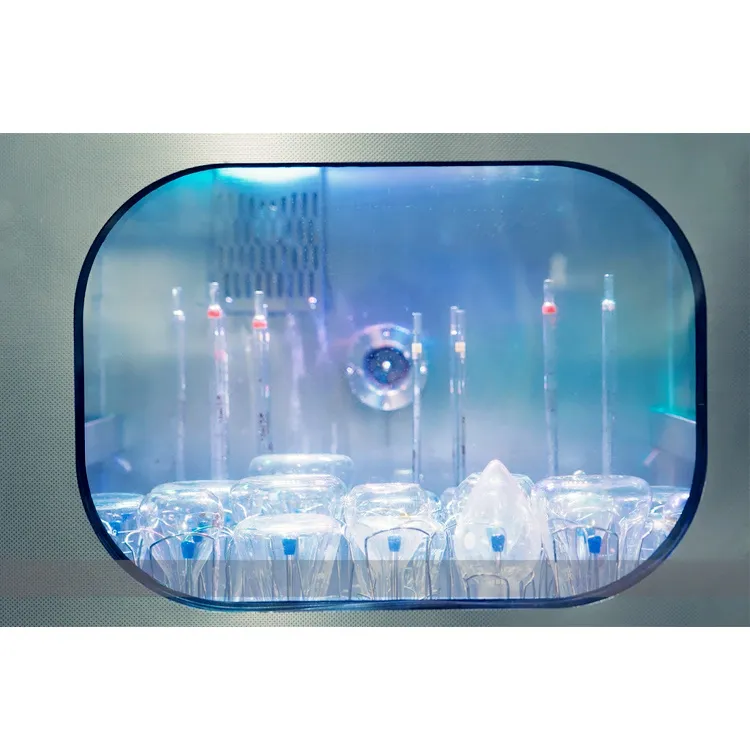

Case Study 1

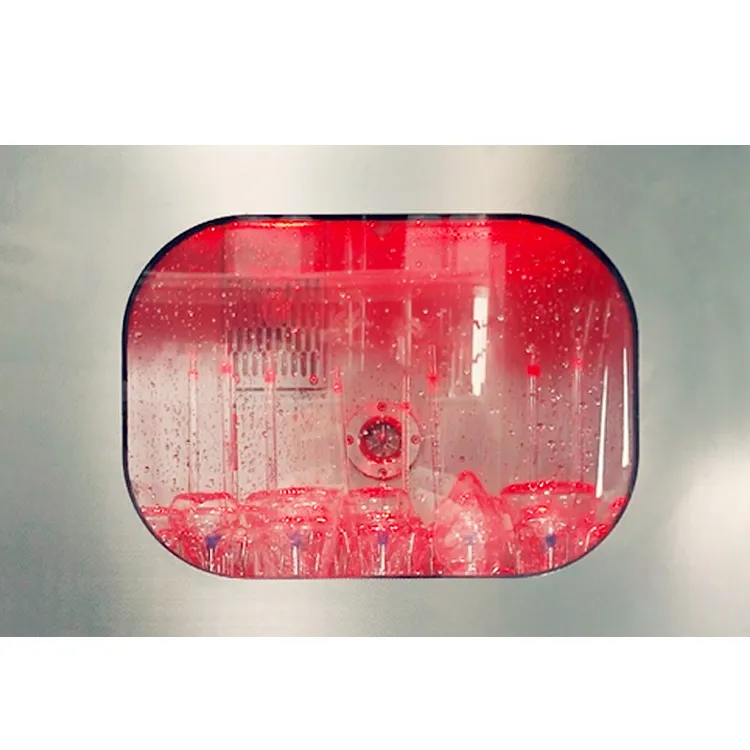

Case Study 2
Case Study 3
Similar Products

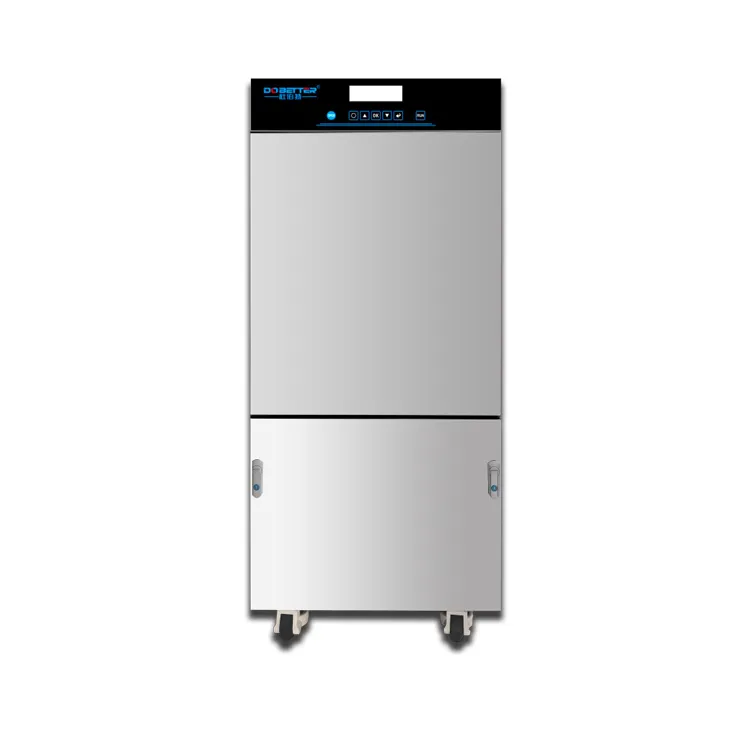

Similar Product 1

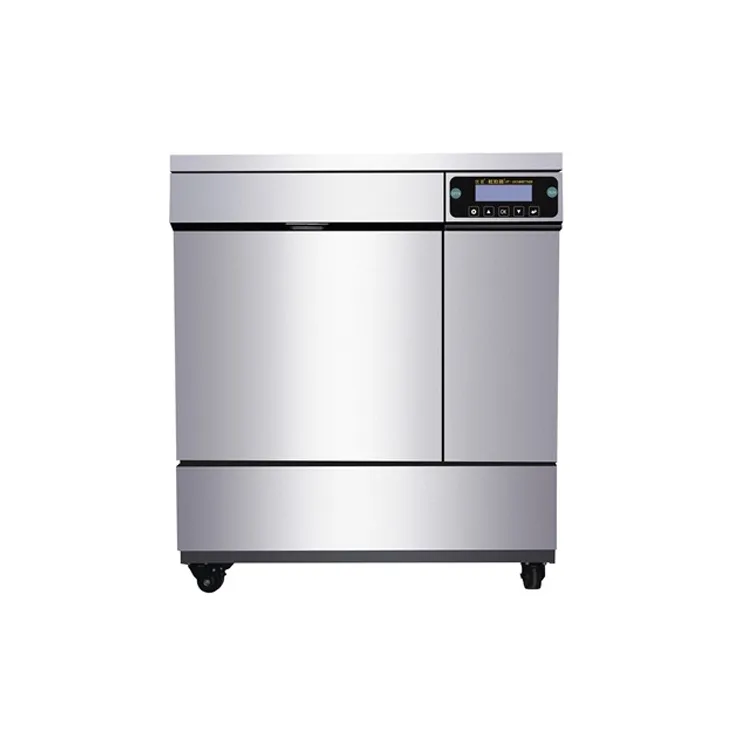

Similar Product 2
About Development & Technology
About Information
Frequently Asked Questions
What is your minimum order quantity?
The minimum order quantity is very low, and the minimum order is one set. For customized projects, it depends on different requirements.
Do you offer guarantee for the products?
Yes, we offer 1-2 years warranty to our products.
What is the delivery time after an order is placed?
Our standard delivery is 3-5 days when we have stock. We will let you know the lead time according to your order quantity in time.
What is the warranty coverage?
The free warranty is one year from the day of qualified commissioning.
How can I get after-sales service?
We will be responsible for our products within the valid warranty period and provide necessary support.
Are my data and information protected?
Yes, your information will be fully protected and will not be disclosed without permission.

Related Products

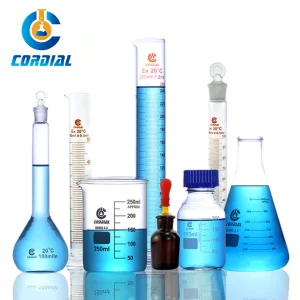

China Manufacturer and Supplier of Laboratory Glassware and Other Lab Items

China Manufacturer and Supplier of Laboratory Glassware and Other Lab Items

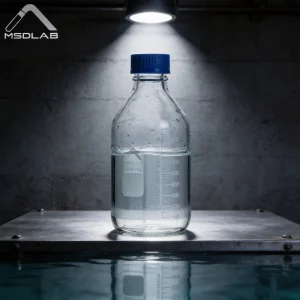

Laboratory Borosilicate 3.3 Glass Media Bottle Glass Reagent Bottle with Gl45 Screw-Neck Bottle

Laboratory Borosilicate 3.3 Glass Media Bottle Glass Reagent Bottle with Gl45 Screw-Neck Bottle

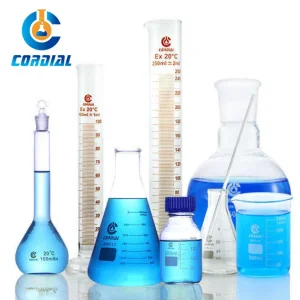

Cordial Lab Borosilicate 3.3 Glass Laboratory Glassware for Lab Supplies

Cordial Lab Borosilicate 3.3 Glass Laboratory Glassware for Lab Supplies

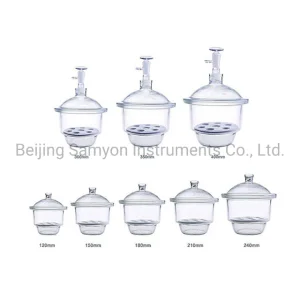

Durable Laboratory Glassware Dryer with High Transparency for Laboratory Testing

Durable Laboratory Glassware Dryer with High Transparency for Laboratory Testing

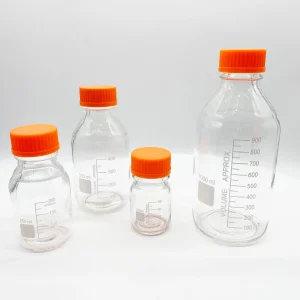

Laboratory Glassware Borosilicate Glass Reagent Bottle with High Quality

Laboratory Glassware Borosilicate Glass Reagent Bottle with High Quality

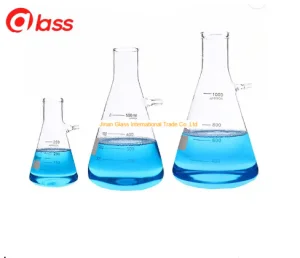

Narrow Neck Wholesale 500ml Borosilicate Glass Flask Glass Laboratory Glassware

Narrow Neck Wholesale 500ml Borosilicate Glass Flask Glass Laboratory Glassware

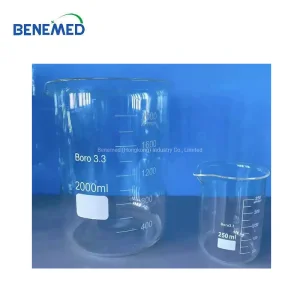

Wholesale Laboratory Glassware 5ml-1000ml Heat Resistant

Wholesale Laboratory Glassware 5ml-1000ml Heat Resistant

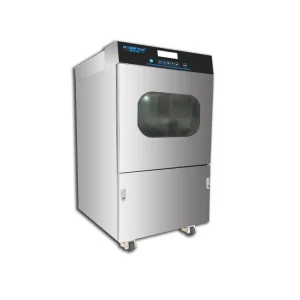

Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System

Sophisticated Technology Laboratory Glassware Washing Machine with Drying Function, Laboratory Utensil Cleaning System

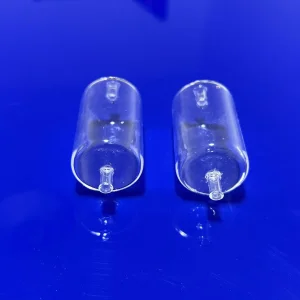

Quartz Glassware for Laboratory Research with High Quality

Quartz Glassware for Laboratory Research with High Quality

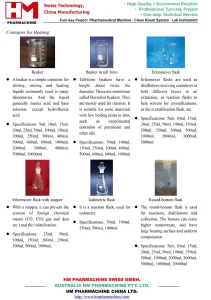

Neck Round Bottom Flask Glassware Laboratory Use
