202L Self-Contained Laboratory Glassware Washing for Cleaning a Variety of Laboratory Glassware with in-Situ Drying

1 / 5

202L Self-Contained Laboratory Glassware Washing for Cleaning a Variety of Laboratory Glassware with in-Situ Drying

Customization:	Available
After-sales Service:	Always
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Information

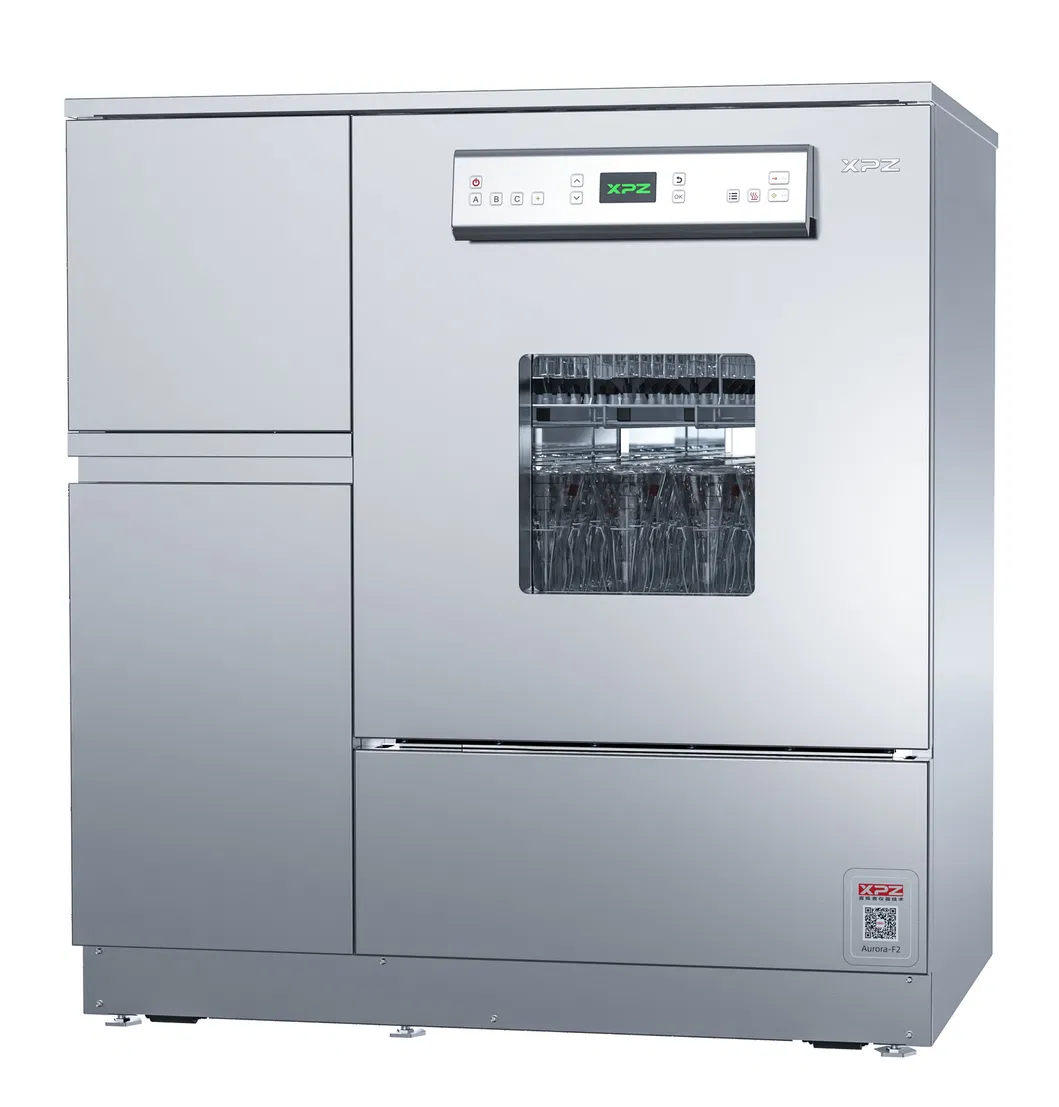

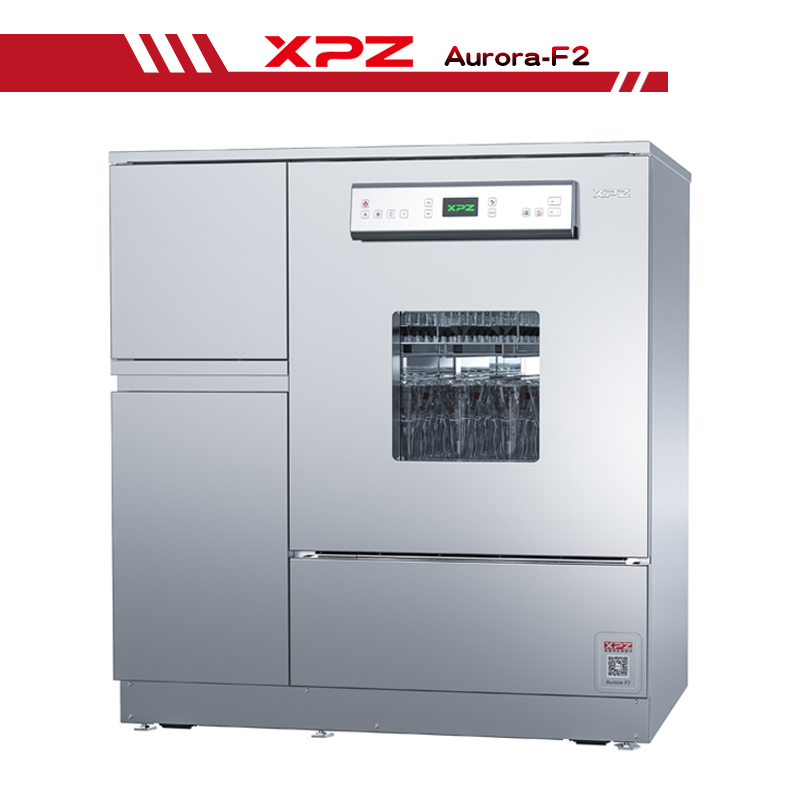

Model NO.	Aurora-F2	Structure	Freestanding
Material	Stainless Steel	Certification	CE, ISO
Application	School, Hospital, Lab	Type	Washing and Drying Machine
Weight	165kg	Specification	H990D750W930mm
Capacity	202L	Origin	China

🔬

Product Description

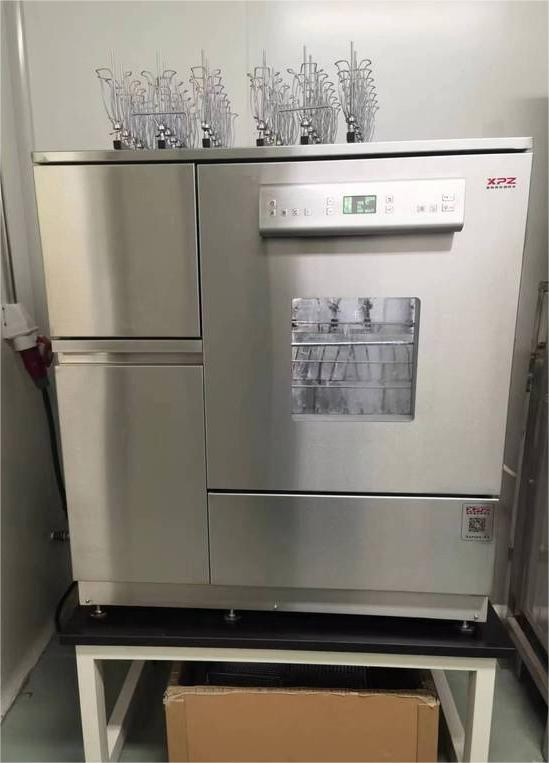

The Aurora-F2 laboratory glassware washer can be installed under the laboratory table-board or separately. It supports connections for both tap water and pure water. The standard process involves using tap water and detergent for the main wash, followed by a pure water rinse. This system provides a convenient and fast cleaning effect, perfect for facilities with stringent drying requirements for cleaned utensils.

Technical Specifications

Feature	Details
Dimension (HWD)	990930750mm
Cleaning Layers	1~3 Layers
Chamber Volume	202L
Circulation Pump Flow	0-600L/min adjustable
Drying Method	Hot air drying
Heating Power	4kw/9kw

🌟

Key Features & Principles

Standardization: Ensures uniform cleaning results and reduces human operation uncertainties.

Traceability: Easy to verify and save records for management.

Safety: Reduces staff risk of injury or infection from manual cleaning.

Efficiency: Combines cleaning, disinfection, and drying in one automatic cycle.

Working Principle

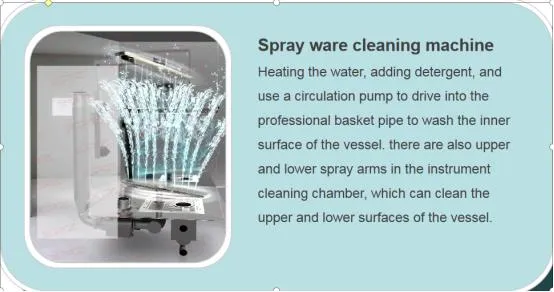

Driven by a circulation pump, the cleaning liquid is sprayed 360° inside and outside the vessels via rotating spray arms. This mechanical and chemical action emulsifies and decomposes residues. Utensils are then hot-cleaned and disinfected. If drying is selected, hot air drying follows to prevent secondary contamination.

💡

Technical Innovation

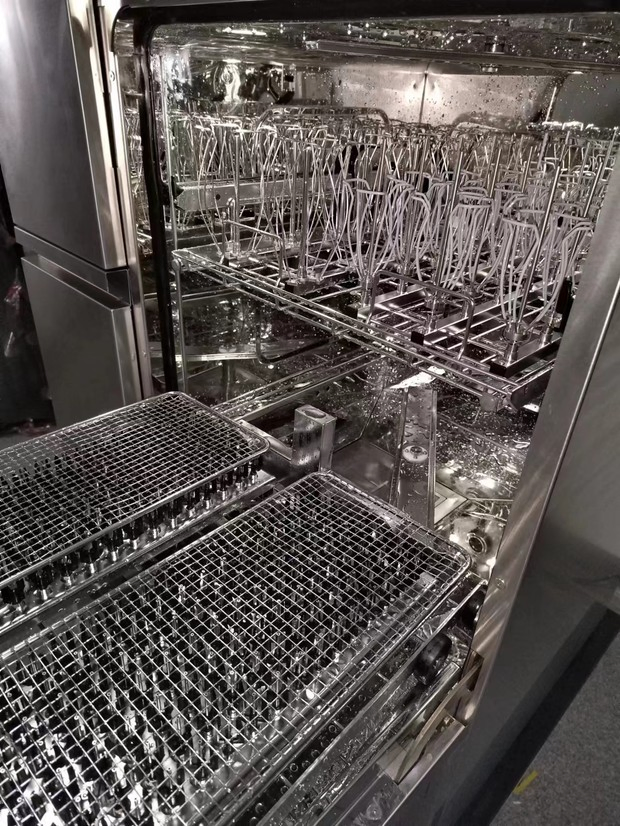

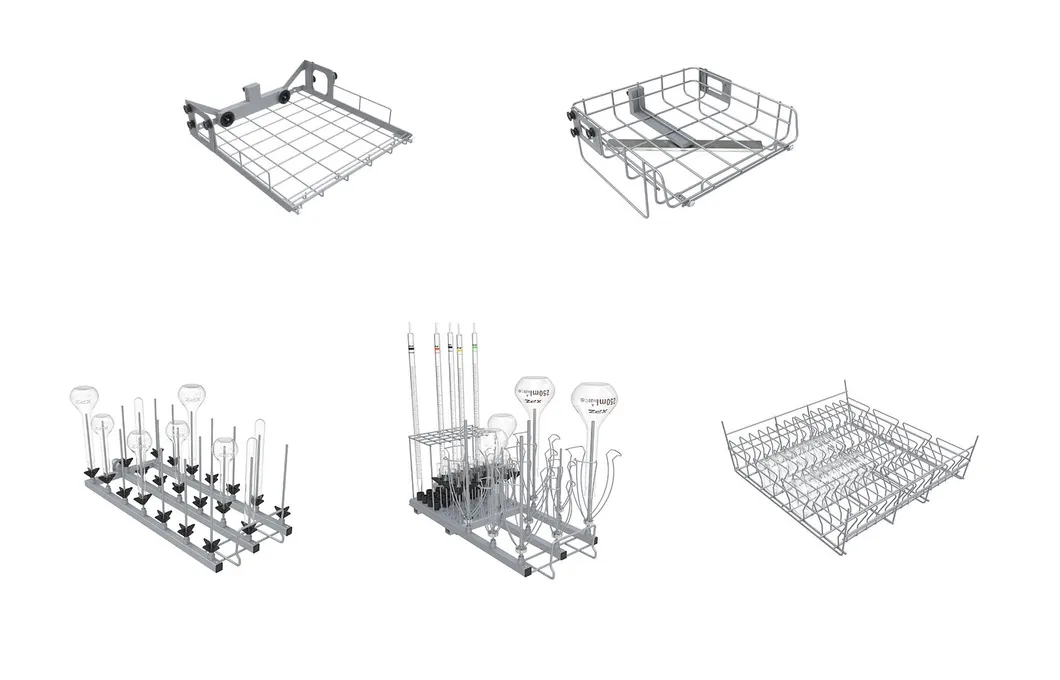

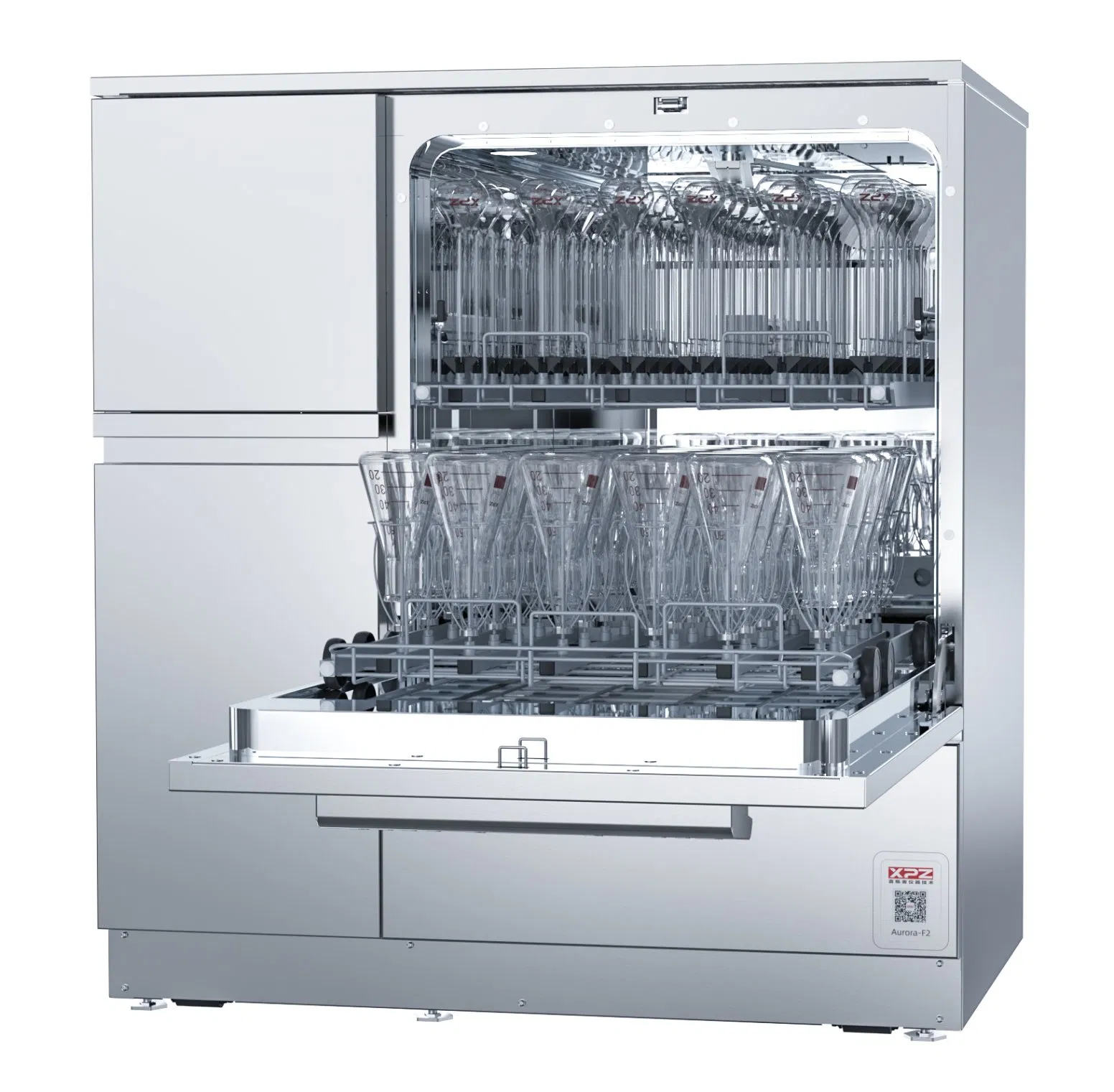

Modular Design: Upper and lower baskets are divided into modules with automatic closing mechanical valves.

Efficient Drying: Built-in HEPA filter ensures clean air; double temperature control for precision.

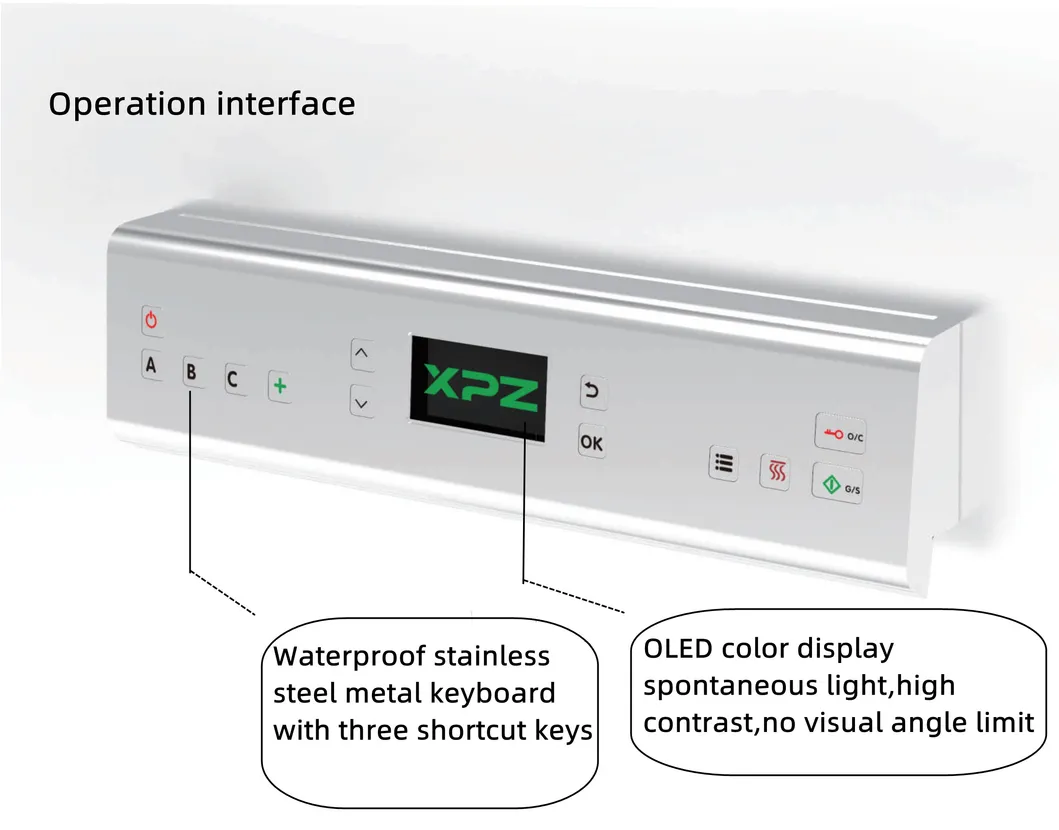

Smart Management: OLED color display, 3-level password management, and fault self-diagnosis.

🌍

Industry Expertise

Providing specialized cleaning solutions for Bio-pharma, Medical Health, Quality Inspection, Food Monitoring, and Petrochemical fields. Our integrated solutions cover everything from selection to installation and operational training.

❓

Frequently Asked Questions

Q1: What are the main benefits of using an automatic glassware washer?

Automatic washers ensure uniform cleaning results, provide traceability through saved records, and significantly reduce the risk of infection or injury associated with manual cleaning.

Q2: Can the washer handle different types of glassware simultaneously?

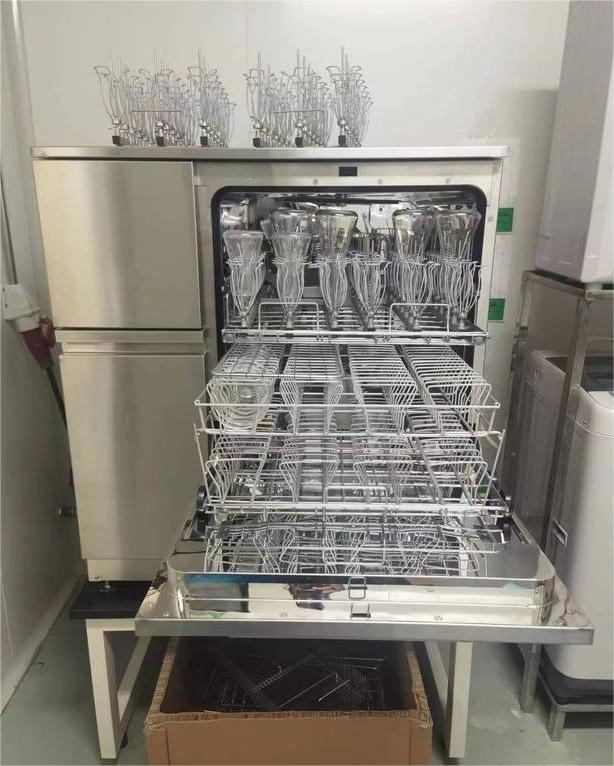

Yes, the modular basket design allows for free combination and the ability to wash various types of glassware across 1-3 levels.

Q3: How is the glassware dried after cleaning?

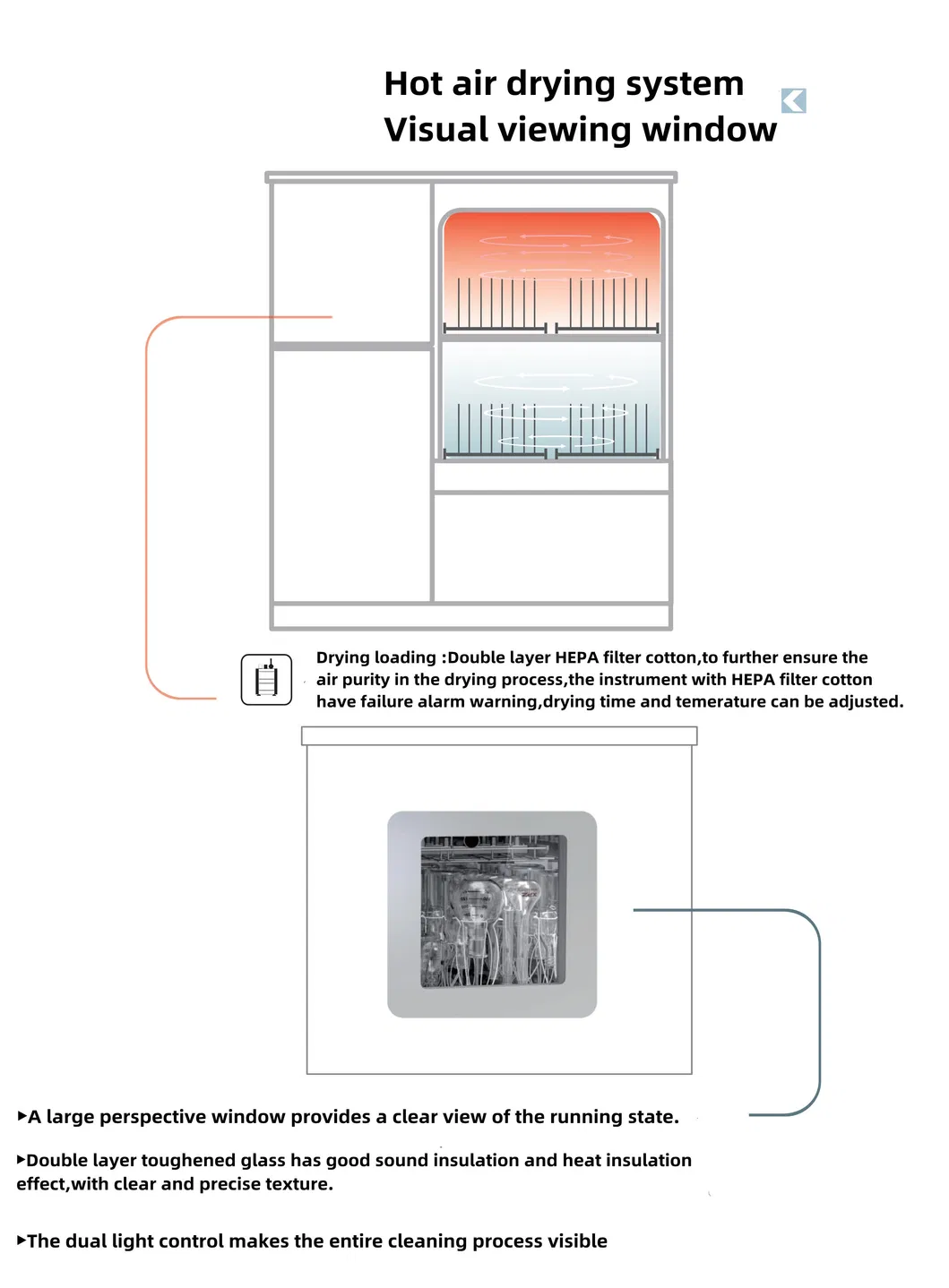

The system features an in-situ hot air drying system with a built-in HEPA high-efficiency filter to ensure the cleanliness of the air and prevent secondary contamination.

Q4: Does the instrument support data management?

Yes, it features 3-level password management, automatic data storage (optional), and USB data export functionality for easy traceability.

Q5: What certifications does the equipment have?

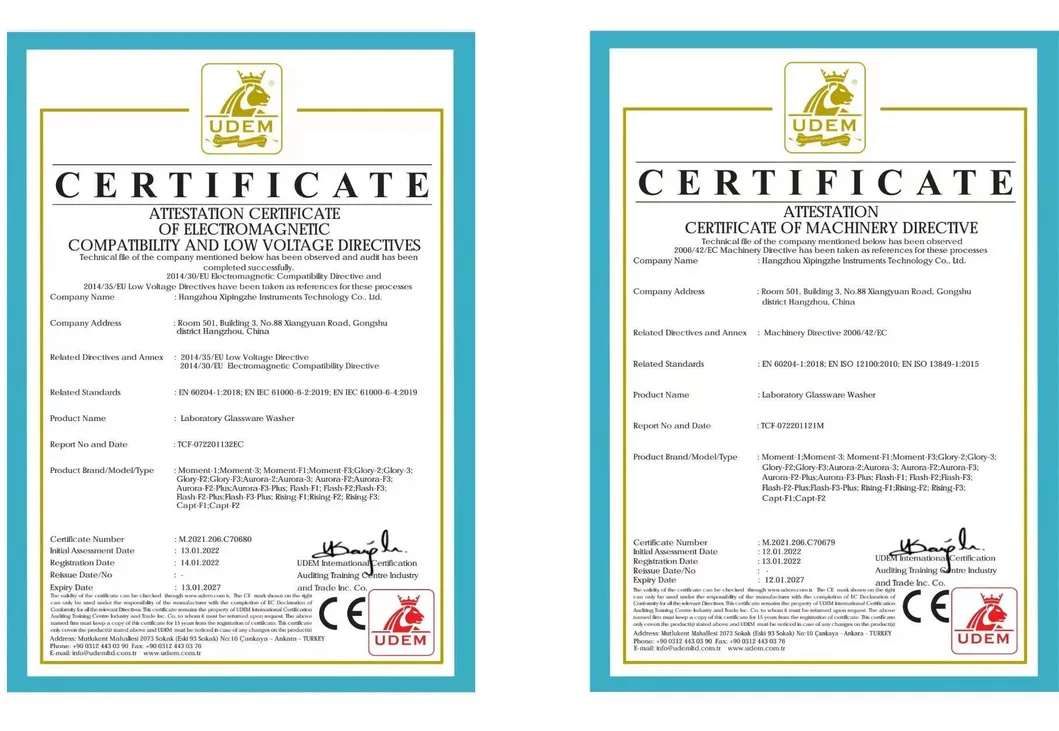

The equipment is manufactured under strict quality standards and holds CE and ISO quality certificates.

Q6: What is the typical washing procedure?

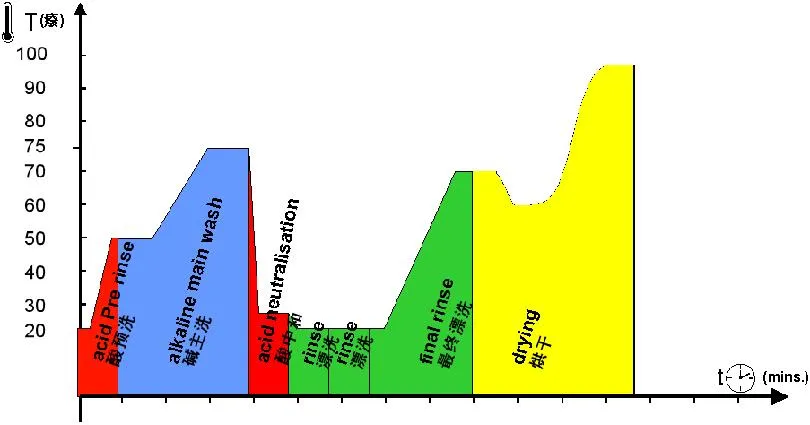

The normal procedure includes: Pre-wash → Alkaline wash (up to 80°C) → Acid rinse → Tap water rinse → Pure water rinse → Pure water rinse (up to 75°C) → Drying.
